Lucas 12V 7Ah Sealed AGM Batteries: Technical Overview & Fitting Guide

Selecting a replacement battery based on voltage alone is a risk that often leads to physical fitment issues or unexpected system failure. It's a common frustration to find that a new unit doesn't quite fit the battery tray or uses a terminal width that doesn't match your existing connectors. When you rely on your mobility scooter or standby power system for independence and safety, you can't afford the anxiety of a battery failing whilst you're away from home.

This technical guide focuses on Lucas 12V 7Ah Sealed AGM Batteries, providing the exact specifications you need to ensure total compatibility. We'll demystify the confusion between part numbers like the LSLA7-12 and NP7-12, confirming both electrical and physical dimensions. You'll learn how to identify the correct 4.8mm F1 terminals and follow a clear, methodical process for swapping your old cells. By the end of this overview, you'll have the confidence to restore your equipment's performance with a reliable, maintenance-free power solution and find the best route for fast UK delivery.

Understanding the Lucas 12V 7Ah AGM Battery

Lucas 12V 7Ah Sealed AGM Batteries are a specific class of power cell engineered for high-reliability applications. They utilise VRLA battery technology, which stands for Valve Regulated Lead Acid. This design employs a one-way pressure relief valve system to manage internal gases, ensuring the unit remains safe and stable during both charging and discharge cycles.

The 7Ah rating is a precise measurement of electrical capacity over time. It indicates how many ampere-hours the battery can deliver under standard load conditions before the voltage drops to a cut-off point. For a typical travel scooter, this capacity provides the necessary energy for short trips around shopping centres or local parks, making it the industry standard for portable "boot scooters" and lightweight travel aids.

Safety is a primary feature of the "Sealed" construction. These batteries are classified as non-spillable and are safe for transport by road, rail, and air. This leak-proof nature is essential for users who frequently dismantle their scooters for car travel or those who need a dependable power source for indoor standby systems where acid leaks would cause significant damage.

The Advantages of AGM Technology

Absorbed Glass Mat (AGM) technology differs from traditional battery designs by trapping the electrolyte in fine fibreglass separators. Because the acid is completely absorbed into these mats, the battery remains functional in various orientations without the risk of leakage, even if the outer casing sustains physical damage.

You'll find these units are entirely maintenance-free throughout their service life. There's no requirement to check fluid levels or top up with distilled water, which simplifies the ownership experience for mobility users. Additionally, the tight physical packing of the internal components provides superior resistance to the vibrations and shocks encountered on uneven outdoor terrain, outperforming traditional flooded batteries in durability.

Lucas Brand Heritage and Reliability

Choosing a reputable brand is vital for equipment that supports your daily independence. Lucas carries a 140-year legacy as a British-born specialist in electrical components and is a name synonymous with dependable power. Their reputation is built on rigorous factory testing protocols and the use of high-grade raw materials.

Reliability is engineered into every cell. Lucas applies specific deep-cycle protocols to their mobility range to ensure the batteries can handle repeated discharge cycles without rapid performance degradation. You can find more detail on how these technical factors influence your choice in The Ultimate Guide to Mobility Scooter Batteries UK, which covers selection and care in depth.

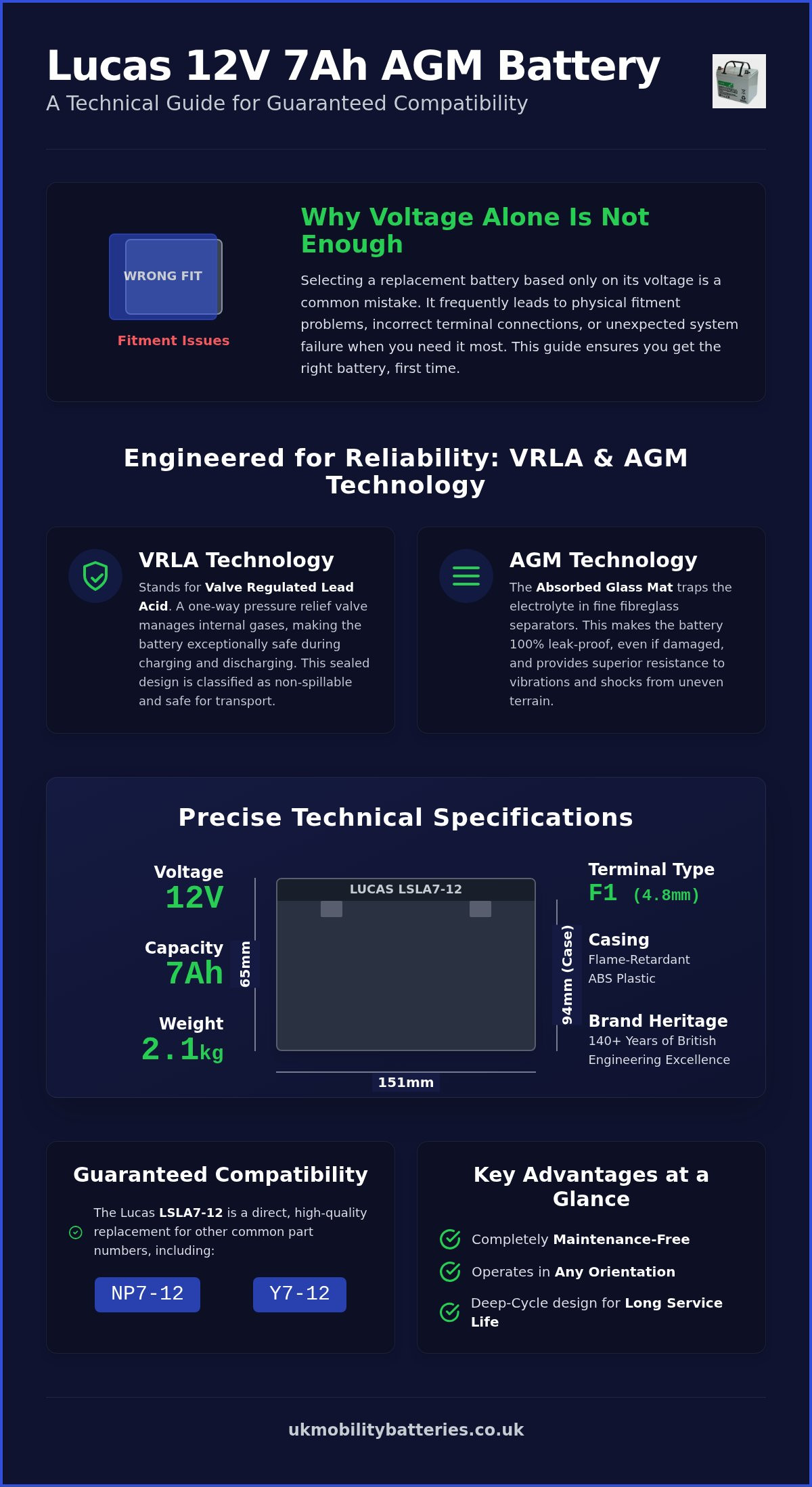

Technical Specifications and Performance Metrics

Precision is vital when replacing Lucas 12V 7Ah Sealed AGM Batteries, as even a few millimetres of difference can prevent the battery box from closing correctly. The standard footprint for this model is 151mm in length, 65mm in width, and a case height of 94mm. Whilst the total height including terminals is slightly higher, these dimensions ensure compatibility with the vast majority of small-chassis mobility aids and alarm systems.

The technical design of Lucas 12V 7Ah Sealed AGM Batteries prioritises durability through a flame-retardant ABS plastic casing. Each unit weighs approximately 2.1kg. This weight is a critical metric for users of travel scooters that require frequent dismantling, as it balances portable handling with the dense lead plates required for consistent power delivery. If your current equipment is underperforming, you can order replacement Lucas AGM batteries for nationwide delivery.

Identifying Battery Terminal Types

The Lucas 12V 7Ah model typically features F1 spade terminals, which measure 4.8mm in width. These are male tab connectors that require a snug fit with the female terminals on your scooter's wiring loom. A loose connection can lead to arcing or intermittent power loss, which often mimics the symptoms of a failing battery. It's essential to ensure these contacts remain clean and corrosion-free for efficient electrical transfer.

If you're unsure which connector your device uses, you can refer to our guide on identifying mobility scooter battery terminal types for a visual comparison. When you eventually replace your old units, remember to follow guidelines for safe battery disposal to ensure the lead components are recycled responsibly and kept out of the general waste stream.

Discharge Rates and Cycle Life

Electrical performance is measured using the C20 rate, which defines the battery's ability to provide 0.35 Amps of current continuously over a 20-hour period. This rating is the standard benchmark for mobility applications, reflecting how the battery behaves under steady, moderate use. It's important to understand that the available capacity changes depending on how fast you draw power from the cell.

The total service life is heavily influenced by the Depth of Discharge (DoD). Whilst these batteries are designed for deep-cycle use, regularly depleting the charge to zero will significantly reduce the number of cycles the battery can provide. To maximise your investment, aim to recharge the unit once it reaches 50% capacity. This habit prevents internal sulphation and keeps the chemical plates in peak condition for longer.

Compatibility and Cross-Reference Guide

Identifying the correct replacement for Lucas 12V 7Ah Sealed AGM Batteries requires matching the physical case size and terminal type rather than just the brand name. Manufacturers use various alphanumeric codes for the same specification. Common equivalents include the Yuasa NP7-12, the Lucas LSLA7-12, and the Y7-12. If your current battery carries any of these designations, the 7Ah Lucas unit is a direct technical match. Always measure the height and width of your current cells before purchasing to ensure a seamless fit.

Most portable mobility scooters operate on a 24V circuit. This means they require two 12V batteries connected in series within the battery box. It's essential to replace both units simultaneously. Mixing a new battery with an old one causes the newer cell to degrade faster as it compensates for the reduced capacity of the aged unit. Verify your existing battery dimensions whilst they are still housed in the scooter's battery pack to ensure no custom modifications have been made to the housing by previous owners.

Mobility Scooter Brand Compatibility

This capacity is specifically designed for lightweight "boot" scooters that dismantle for car transport. Leading manufacturers like Pride Mobility and Sunrise Medical utilise these cells in their most popular travel models. You'll find them in the Pride Go-Go series, the Drive Medical Scout, and various Shoprider portable models. In many instances, users can upgrade to an uprated 9Ah battery. This uprated version shares the same physical 151mm x 65mm footprint but offers a higher capacity for extended range. For those using larger powerchairs or heavy-duty scooters, our guide on the Best Batteries for Electric Wheelchairs provides details on higher-capacity alternatives.

Standby and UPS Applications

Beyond mobility, these batteries are a staple in home security systems and Uninterruptible Power Supplies (UPS). The Absorbent Glass Mat (AGM) construction is superior to standard alarm batteries because it is designed for deep-cycle recovery. Standard standby batteries are engineered to stay charged for long periods and may fail if fully discharged. In contrast, Lucas 12V 7Ah Sealed AGM Batteries can handle the repeated discharge cycles required by active equipment. When replacing units in a multi-battery UPS, ensure you match the voltage and capacity exactly. This maintains the balanced charging profile required by the system's internal inverter and prevents premature failure of the new cells.

Installation and Maintenance Best Practices

Before handling Lucas 12V 7Ah Sealed AGM Batteries, ensure the scooter's ignition is off and the key is removed. Remove all metal jewellery, including rings and watches, to eliminate the risk of accidental short-circuiting across the terminals. Wear protective gloves to maintain a clean grip on the casing and connectors. Safety is paramount when dealing with electrical components, even at low voltages.

Most portable scooters house the batteries within a detachable plastic battery pack. Undo the screws or clips to reveal the internal compartment. You will typically see two batteries connected by a short bridge wire. Carefully disconnect the F1 spade terminals from the old units. Take a photograph of the wiring before removal. This provides a visual reference to ensure the red and black leads are returned to their correct positions during reinstallation.

To achieve the 24V output required by most mobility motors, the batteries must be wired in series. This involves connecting the positive (red) terminal of the first battery to the negative (black) terminal of the second battery using the bridge wire. The remaining positive and negative terminals then connect to the main scooter loom. Once installed, charge the new units for a full 12 to 14 hours. This initial "soak" charge is vital for balancing the internal chemistry and ensuring the maximum possible service life from the outset.

Charging Protocols for Lucas AGM Batteries

Use an automatic 3-stage charger for all maintenance. These devices move from a high-current bulk charge to a lower-voltage float mode once the battery reaches capacity. This automation is critical because you should never overcharge a mobility scooter battery. Excessive heat from overcharging can cause the ABS case to swell or gas to escape through the safety valves. During winter, if the scooter remains unused, charge the batteries at least once a month. Cold temperatures increase the self-discharge rate, and leaving them depleted leads to permanent capacity loss.

Replacing Batteries in Pairs

Always buy and install batteries in matched pairs. Mixing a new Lucas 12V 7Ah with an older unit is a technical error that leads to premature failure. The older battery will have a higher internal resistance and lower capacity. This imbalance causes the newer battery to work harder to compensate, effectively "dragging down" its voltage and shortening its lifespan. For optimal performance and reliability, purchase a matched pair of Lucas AGM batteries to ensure your power system remains balanced and efficient.

Why Choose Lucas Batteries from UK Mobility Batteries?

UK Mobility Batteries is an authorised retailer of Lucas power solutions, specialising in the specific requirements of the mobility sector. When you select Lucas 12V 7Ah Sealed AGM Batteries from our inventory, you receive a product engineered for deep-cycle performance rather than a generic standby cell. Every Lucas LSLA battery includes a 1-year manufacturer guarantee, providing technical assurance that your power source meets stringent quality control standards. Choosing an established brand ensures the lead plates and internal separators are designed to withstand the vibration and discharge patterns unique to mobility equipment. We focus on being a technical specialist rather than a high-volume box-shifter, ensuring every customer receives a component that is fit for purpose.

Reliable Nationwide Delivery

We understand that a dead battery restricts your independence, so we prioritise a fast UK delivery service to minimise downtime. Shipping heavy AGM batteries requires specialist logistics knowledge to prevent terminal damage or casing stress during transit. We use reinforced, secure packaging designed for high-density components, ensuring your order arrives in the same condition it left our warehouse. This methodical approach to logistics ensures that your mobility aid is back in service as quickly as possible. If you aren't certain that the battery is the source of your equipment's issue, we recommend consulting our mobility scooter troubleshooting guide to identify common signs of component failure before you commit to a purchase.

Expert Technical Advice

Our role extends beyond simple retail; we act as technical partners for our customers. If the part numbers on your existing unit are obscured or confusing, our team can confirm the correct replacement from a simple photograph of your battery box. This expert support eliminates the risk of ordering the wrong physical size or terminal type. We provide the data you need to make an informed decision, focusing on electrical compatibility and physical fitment. Once your new units arrive, you can refer to our resources on how to change mobility scooter batteries safely for a methodical installation process. This ensures your connections are secure and your 24V system is correctly configured for long-term reliability. By choosing genuine Lucas 12V 7Ah Sealed AGM Batteries, you invest in a proven power solution backed by specialist support. Browse our full range of Lucas 12V 7Ah batteries and order online today.

Restore Reliability to Your Mobility Equipment

Ensuring your mobility scooter remains dependable requires a precise match of technical specifications and installation protocols. By confirming the 151mm x 65mm footprint and identifying the 4.8mm F1 terminals, you avoid the common pitfalls of improper fitment. Correct series wiring and a dedicated initial charge cycle are essential steps to maximise the lifespan of your new power cells.

As an official retailer, UK Mobility Batteries provides genuine Lucas 12V 7Ah Sealed AGM Batteries backed by a 1-year manufacturer warranty. Our specialist team offers expert technical support to assist with compatibility queries, ensuring you receive the exact component required for your system. We prioritise fast UK delivery to minimise your downtime and restore your independence quickly.

Buy Genuine Lucas 12V 7Ah Batteries with Fast UK Delivery

With the right technical data and a high-quality replacement, you can return to your daily routine with confidence in your equipment's performance.

Frequently Asked Questions

Can I use a 9Ah battery instead of a 7Ah in my mobility scooter?

Yes, you can often upgrade to a Lucas 12V 9Ah Uprated Sealed AGM Battery because it shares the same physical footprint of 151mm by 65mm as the 7Ah version. This upgrade provides approximately 28% more capacity, which translates to a longer driving range between charges. Always check your battery box clearance before purchasing to ensure the slightly taller terminal height doesn't interfere with the casing or your existing wiring harness.

How long do Lucas 12V 7Ah AGM batteries typically last?

Most Lucas 12V 7Ah Sealed AGM Batteries provide a service life of 12 to 24 months, though this depends heavily on your depth of discharge and charging frequency. Batteries used daily and discharged to low levels will require replacement sooner than those used occasionally. To maximise longevity, avoid leaving the batteries in a discharged state and ensure they are charged after every trip, regardless of the distance you have travelled.

Do I need to charge my new Lucas batteries before using them for the first time?

You must charge your new batteries for a full 12 to 14 hours before their initial use. Although they arrive with a partial factory charge, this initial "soak" charge ensures the internal chemistry is fully activated and the cells are balanced. Skipping this step can lead to a permanent reduction in total capacity and may shorten the overall service life of your new mobility power system, leading to premature failure.

What is the difference between F1 and F2 terminals on a 12V 7Ah battery?

The difference lies in the physical width of the spade connector. F1 terminals are 4.8mm wide, whilst F2 terminals are 6.35mm wide. Lucas 12V 7Ah Sealed AGM Batteries typically utilise the narrower F1 terminal. It's essential to match the terminal width to your scooter's existing wiring loom connectors. If you attempt to force a larger F2 terminal into an F1 connector, you risk damaging the wiring or creating a poor electrical contact.

Why does my mobility scooter require two 12V 7Ah batteries?

Most mobility scooter motors are designed to operate on a 24V system, which is achieved by connecting two 12V batteries in series. This configuration combines the voltage of both units whilst maintaining the 7Ah capacity. It's critical to replace both batteries as a matched pair. Mixing a new battery with an older one causes an electrical imbalance that will lead to the premature failure of the newer, more efficient cell within the pack.

Are Lucas AGM batteries safe for taking on an aeroplane?

Yes, Lucas AGM batteries are classified as non-spillable and are generally safe for air travel under IATA regulations. Because the electrolyte is absorbed into glass mats, there's no liquid acid to leak, even if the case is tilted or damaged during transit. However, you should always notify your airline in advance. They may require you to disconnect the batteries or insulate the terminals to prevent accidental short-circuits whilst in the hold.

How can I tell if my Lucas battery has failed and needs replacing?

The most common sign of failure is a significant reduction in your scooter's driving range or the motor struggling on inclines. You might also notice the battery charger reaching the "full" state much faster than usual, which indicates a loss of capacity. If the battery casing appears swollen or if the voltage drops rapidly under load, the internal plates are likely damaged and the unit requires immediate replacement to restore performance.
