12V 7Ah Battery for Mobility Scooter: Technical Specifications & Fitting Guide

Could a difference of just 1.5 millimetres on your battery terminal be the reason your mobility scooter fails to start whilst you are away from home? Selecting a 12v 7ah battery for mobility scooter involves more than just matching the voltage; it requires precision regarding physical dimensions and terminal types. Many users find the transition between F1 and F2 terminals confusing, and choosing the wrong specification often leads to poor connections or a battery that simply won't fit the tray. It's a common frustration that can easily be avoided with the right technical data.

We understand that you need dependable performance and a maintenance-free solution to maintain your independence. This guide provides a comprehensive technical breakdown of the 12V 7Ah standard, ensuring you can select and fit your replacement with absolute confidence. We'll cover critical measurements, terminal identification, and the practical steps to achieve a longer range per charge. By following this expert-led advice, you'll ensure your equipment remains reliable and ready for use with the benefit of fast UK delivery options for your replacement components.

Understanding the 12V 7Ah Battery Specification for Mobility Devices

The 12V 7Ah battery is the standard power source for the "travel" or "boot" scooter category in the UK. Manufacturers select this specification because it offers a precise balance between physical weight and portable range. Unlike larger pavement scooters that require heavy-duty batteries, these smaller units allow the scooter to be dismantled easily for car boot transport. It's vital to distinguish between a "standby" battery used for alarm systems and a high-quality 12v 7ah battery for mobility scooter. Standby batteries are designed for occasional use during power cuts. In contrast, mobility batteries must endure "deep cycle" use. This means they are engineered to be discharged and recharged daily without internal damage. The Lucas 12V 7Ah Sealed AGM Battery is specifically built for these demanding cycles, providing a reliable and durable replacement for original equipment.

The Role of Amp Hours (Ah) in Your Daily Range

Amp Hours (Ah) represent the total charge a battery can deliver over a specific period. For a 7Ah battery, this capacity dictates how far you can travel before the voltage drops and the scooter slows down. Several variables affect the real-world range amongst UK users. Steep inclines, uneven pavement, and the total weight of the user all place additional strain on the motor. This consumes power more rapidly. Understanding rechargeable battery technology is helpful here; these units perform best when they aren't fully depleted. To preserve the 7Ah capacity over the battery's lifespan, you should recharge the unit after every trip. Frequent shallow discharges are far better for the internal chemistry than occasional deep discharges that leave the battery flat for long periods.

Sealed AGM Technology: The Maintenance-Free Advantage

Modern mobility scooters almost exclusively use Absorbent Glass Mat (AGM) technology. This design features a fine glass fibre mat that absorbs the electrolyte, making the battery completely spill-proof. You don't need to perform water top-ups or check acid levels. This simplifies maintenance for the end user. This "Sealed" construction is essential for boot scooters that are frequently tilted, turned on their side, or dismantled for storage. Because the Lucas 12V 7Ah Sealed AGM Battery is non-spillable, it meets the safety requirements for both car transport and air travel. This ensures that you can take your mobility aid on holiday without worrying about hazardous leaks or restrictive transport regulations. It's a dependable, fit-and-forget solution for active users; similarly, if you enjoy other active outdoor pursuits requiring specialist gear, you can visit Socom Tactical Airsoft to find a range of high-quality equipment and accessories.

Technical Specifications and Critical Dimensions

Precision is non-negotiable when selecting a 12v 7ah battery for mobility scooter. The standard physical footprint for this capacity is 151mm in length, 65mm in width, and 95mm in height. These measurements are industry-standard, yet slight variations in casing design can occur amongst different manufacturers. You must measure the internal dimensions of your battery box before ordering. Even a 2mm discrepancy can prevent the lid from closing securely or stop the battery from seating correctly. Ensure you account for the height of the terminals, as some designs may sit slightly taller once the cables are attached.

UK weather conditions significantly impact battery performance. During the winter months, chemical reactions within the lead-acid cells slow down. This leads to a temporary reduction in available capacity. High-quality AGM batteries are designed with higher lead purity to mitigate these effects, but users should expect slightly shorter trip distances when temperatures drop below 5°C. Reliable performance in the British climate depends on these internal specifications rather than just the exterior casing size.

Physical Fit and Battery Box Security

A secure fit is essential for long-term safety. If a battery is allowed to "rattle" or move within its housing, it places mechanical stress on the terminal connections. Over time, this vibration can lead to fractured wires or intermittent power loss whilst in motion. AGM technology is particularly suited for boot scooters because the electrolyte is trapped in glass mats. This prevents leaks even when the scooter is dismantled and the battery boxes are laid on their sides in a car boot. If your replacement unit is slightly smaller than the original housing, use high-density packing foam or spacers to eliminate movement. Always replace these batteries in pairs. Mixing a new battery with an older one causes an electrical imbalance; the charger cannot effectively manage two cells with different internal resistances.

Weight and Portability Factors

Weight is a primary indicator of internal build quality. A standard 12V 7Ah unit typically weighs between 2.2kg and 2.5kg. A heavier battery generally indicates thicker lead plates and higher density, which directly correlates to a more robust cycle life. Greater lead density within the battery plates provides a larger surface area for chemical reactions, which fundamentally increases the total number of charge cycles the unit can survive. For users of dismantled boot scooters, this weight contributes to the overall lifting requirement. Choosing a 12v 7ah battery for mobility scooter from a reputable manufacturer ensures you get the best capacity-to-weight ratio. You can find the full range of technical specifications for Lucas mobility batteries on our product pages to ensure a perfect match for your device.

Uprating Your Power: The 7Ah vs 9Ah Capacity Choice

Whilst the 12v 7ah battery for mobility scooter remains the standard factory specification for many travel devices, users often require greater endurance for their daily activities. The Lucas 12V 9Ah Uprated Sealed AGM Battery has become the most popular upgrade choice for those seeking to extend their range. This uprated unit provides up to 28% more capacity than the standard 7Ah model, allowing for longer trips between charges. A critical technical advantage of the 9Ah unit is its physical footprint. Despite the increased power storage, it maintains the exact dimensions of the 7Ah battery: 151mm in length, 65mm in width, and 95mm in height. This ensures it fits perfectly into existing battery boxes without any modifications to the housing or cabling.

When to Choose the 9Ah Uprated Battery

Choosing the 9Ah version is a practical decision for users who frequently navigate hilly terrain or carry heavier loads. These conditions place a higher demand on the cells, and the extra 2Ah provides a necessary buffer to prevent being stranded. You don't usually need to replace your charger when upgrading. Most standard 2A or 3A mobility chargers are fully compatible with both 7Ah and 9Ah AGM batteries. From a value perspective, the cost-to-benefit ratio of the 9Ah unit is high. The small increase in initial purchase price is often offset by the added security of a larger power reserve during longer shopping trips or excursions.

Impact on Scooter Performance

There is a common misconception that a 9Ah battery will make a mobility scooter faster. This isn't the case. Speed is determined by the motor and the voltage (12V), not the capacity (Ah). However, a higher capacity battery significantly improves longevity. By using a 9Ah battery for a trip that would typically deplete a 7Ah battery, you reduce the depth of discharge. Shallow discharge cycles are less stressful for the internal lead plates, which helps to extend the overall service life of the cells. Amongst UK mobility users who rely on their scooters for intensive daily use, the Lucas 12V 9Ah Uprated Sealed AGM Battery is often preferred because it maintains a higher voltage for longer under load, ensuring the scooter doesn't feel sluggish as the battery level drops.

• Dimensions: Identical 151mm x 65mm x 95mm footprint.
• Capacity: 9Ah provides a 28% increase over the standard 7Ah.
• Compatibility: Fits standard boot scooter battery boxes.
• Longevity: Lower depth of discharge leads to a better cycle life.

Installation Essentials and Terminal Configurations

Correct installation ensures the longevity of your 12v 7ah battery for mobility scooter. Begin by opening the battery casing and disconnecting the existing wiring harness. You should clean the internal battery box using a dry cloth to remove any debris or acid residue that may have accumulated over time. When installing the new units, you must adhere to the "replacing in pairs" rule. Installing a single new battery alongside an old one causes the older cell to draw excessive current from the new one. This leads to premature failure and unbalanced charging cycles. Ensure all connections are tight; a loose terminal creates resistance, which generates heat and can melt the plastic casing or damage the scooter's controller.

Safety is paramount during the fitting process. Avoid touching both terminals simultaneously with a metal tool, as this causes a short circuit. Most boot scooters use a simple "plug and play" harness, but you must still verify that the red cable is connected to the positive terminal and the black cable to the negative. If your cables show signs of corrosion or fraying, they should be cleaned or replaced before you fit the new batteries. Secure the batteries within the box using the original brackets or foam inserts to prevent movement during transit.

Identifying and Adapting Terminals

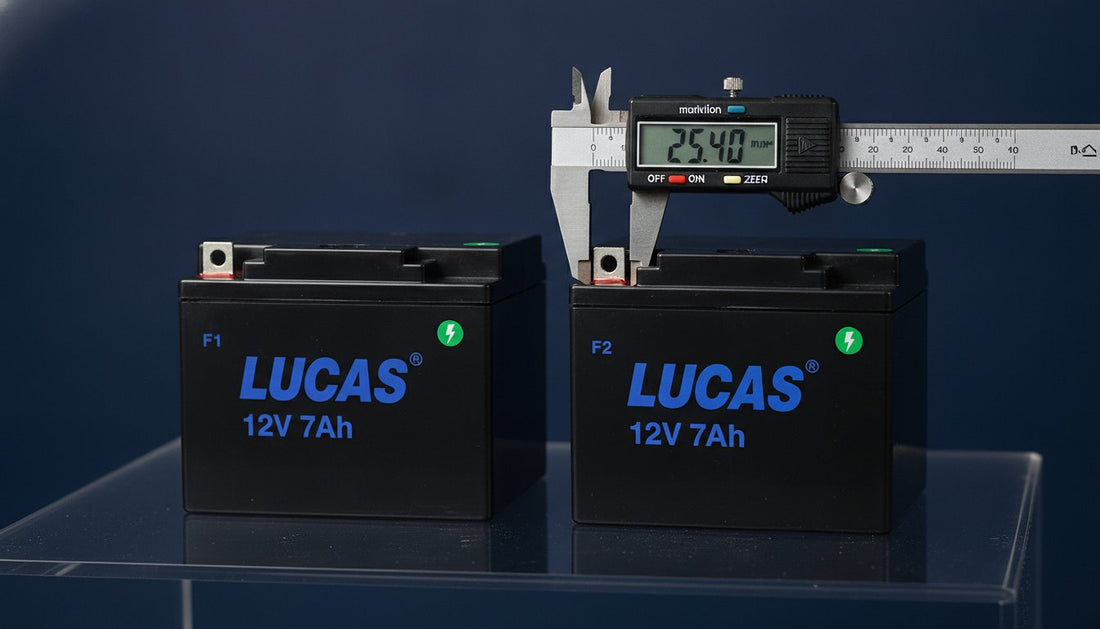

Identifying your terminal size is the most technical part of the fitting process. Most 7Ah batteries use F1 spade terminals, which measure 4.75mm in width. However, some heavy-duty harnesses require F2 terminals, which are wider at 6.35mm. If your scooter uses the wider F2 connectors but your new battery has F1 terminals, you can use "F1 to F2" piggyback adapters to ensure a secure fit. Never attempt to force a small connector onto a large terminal or vice versa. Use the original rubber terminal covers to insulate the connections. This prevents accidental short circuits if a metal object falls into the battery box whilst you are dismantling the scooter for transport. You can order Lucas 12V 7Ah batteries with the correct terminal specifications to match your original equipment perfectly.

The First Charge: Setting Up for Success

Your new batteries require a full 12-hour initial charge before their first use. This equalisation charge ensures both batteries in the series are at the same voltage level from the start. Confirm that your charger is designed for AGM technology and matches the 7Ah to 9Ah capacity range. Modern AGM batteries do not suffer from "memory effect", so you don't need to fully discharge them before plugging in the charger. In fact, keeping them topped up is the best way to maintain their chemical health. Always charge the batteries in a well-ventilated area and avoid leaving them on charge for more than 24 hours unless your charger has a dedicated "float" or maintenance mode.

Selecting the Right Lucas Battery for Your Mobility Needs

Lucas remains a trusted name in the UK mobility battery market due to its commitment to technical excellence and long-term durability. When you choose a 12v 7ah battery for mobility scooter from Lucas, you invest in a product with high lead purity and a robust case design. The brand's reputation for reliability is well-earned amongst UK users who require dependable power for their daily independence. The Lucas range, including both the standard 7Ah and the uprated 9Ah units, is engineered specifically for deep-cycle applications. These batteries provide the consistent voltage levels necessary to protect your scooter’s electronic controller from damage caused by low-voltage operation. Selecting a reputable brand like Lucas ensures that your replacement cells meet or exceed the original manufacturer's specifications.

VAT Relief for UK Mobility Customers

UK law allows individuals with chronic illnesses or disabilities to purchase mobility equipment without paying the standard 20% VAT. This relief applies to the Lucas 12V 7Ah and 9Ah batteries when they are purchased for personal use in a mobility scooter or wheelchair. To qualify, you must be chronically sick or disabled; the batteries must also be for your own personal or domestic use. At the UK Mobility Batteries store, the process is simple and efficient. You don't need to wait for a refund. You simply complete a self-declaration form during the checkout process to pay the VAT-exclusive price immediately. This makes maintaining your mobility aid more affordable whilst ensuring you remain compliant with HMRC regulations.

Why Order from UK Mobility Batteries?

Finding the correct power solution requires precision. We provide expert technical support to help you identify the exact battery size and terminal type for your specific scooter model. If you're unsure whether your harness requires F1 or F2 spade connectors, our specialist team can help you verify the measurements. We maintain high stock levels of the Lucas 12V 7Ah and 9Ah range to ensure fast national delivery across the UK. This reduces your downtime and gets you back on the move with minimal delay. Before placing your order, we recommend checking your scooter manual to confirm the 151mm x 65mm x 95mm footprint is correct for your battery box. This ensures your new 12v 7ah battery for mobility scooter fits perfectly into the designated compartment. Once you've verified the dimensions, you can view our range of Lucas 12V 7Ah and 9Ah batteries to secure your replacement power cells today.

Restore Your Scooter's Reliability with Precision Power

Selecting a replacement 12v 7ah battery for mobility scooter requires attention to detail. You now have the technical data to distinguish between F1 and F2 terminals and the knowledge to choose between standard 7Ah or uprated 9Ah capacities. Remember that physical dimensions must match your battery box exactly to ensure a safe and secure fit. Replacing your batteries in pairs whilst following the initial 12-hour charge protocol will maximise the lifespan of your investment and ensure balanced power delivery.

As an Authorised Lucas Battery Retailer, we provide the exact specifications needed to keep your travel scooter operational. Our team offers expert technical support to assist with any fitting queries you may have. Eligible UK customers can also benefit from VAT relief at checkout for personal mobility use, making high-quality replacements more accessible. Fast UK delivery ensures that your downtime is kept to a minimum.

Shop Premium Lucas 12V 7Ah Batteries with Fast UK Delivery

With the correct technical approach and high-quality components, you can maintain your independence and ensure your scooter is ready for every journey. Reliable power is the foundation of your mobility.

To find more ways to support your wellbeing and stay active in your later years, visit Healthy Seventy for expert health and wellness advice.

Frequently Asked Questions

Can I use a standard 12V 7Ah car battery for my mobility scooter?

No, you cannot use a car battery for this application. Car batteries are designed for short bursts of high current to start an engine, whereas mobility scooters require deep-cycle batteries to provide sustained power over long periods. Using a standard automotive battery will lead to rapid internal degradation and failure because the plates aren't built to survive the repeated deep discharge cycles required for mobility aid operation.

How long should a 12V 7Ah mobility scooter battery last on a single charge?

A standard 12v 7ah battery for mobility scooter typically provides a range of 6 to 10 miles per charge. This figure varies based on the scooter's efficiency, the user's weight, and the local terrain. Cold UK weather also impacts performance, as low temperatures slow the chemical reactions inside the AGM cells. Regular charging after every trip helps maintain this range over the battery's lifespan.

What is the difference between F1 and F2 terminals on a 7Ah battery?

The difference is the physical width of the metal spade connector on top of the battery. F1 terminals are the standard size at 4.75mm wide, whilst F2 terminals are wider at 6.35mm. You must check your existing wiring harness to ensure the connectors will slide securely onto the new terminals. Using the wrong size results in a loose connection that can cause intermittent power loss or heat damage.

Do I need to replace both batteries in my scooter at the same time?

Yes, you must always replace both batteries simultaneously to ensure balanced performance. If you mix a new battery with an old one, the charger cannot accurately determine the state of charge for each individual unit. This often leads to the older battery being overcharged and the newer one being undercharged. This electrical imbalance significantly shortens the service life of your new investment and reduces overall reliability.

Can I upgrade from a 7Ah to a 9Ah battery without changing my charger?

Upgrading to a 9Ah battery is entirely possible using your original charger. Because the voltage remains identical to the standard 12v 7ah battery for mobility scooter, the charger will safely manage the higher capacity, though the charging cycle will take slightly longer. This upgrade is a cost-effective way to increase your travel distance without needing to purchase new charging equipment or modify the scooter's internal battery box housing.

How should I store my 7Ah batteries if I am not using the scooter for a month?

Store your batteries in a fully charged state in a cool, dry environment. Lead-acid batteries naturally self-discharge over time; if left for a month without attention, the voltage may drop to a level that causes permanent sulphation. You should reconnect the charger once every three to four weeks to top up the capacity. This simple maintenance routine prevents internal damage and ensures the scooter is ready when you need it.

Why is my 12V 7Ah battery showing 12V but not powering the scooter?

A battery can show 12V on a multimeter but fail "under load" because it lacks the capacity to deliver current. This situation often indicates high internal resistance or aged lead plates that can no longer sustain a chemical reaction. A healthy 12V AGM battery should actually read approximately 12.8V to 13.0V when fully charged. If your battery drops significantly below 12V the moment you pull the throttle, it requires replacement.

Is it safe to take my 12V 7Ah AGM batteries on an aeroplane?

Yes, Lucas AGM batteries are classified as non-spillable and are safe for air travel under IATA regulations. These batteries don't contain free-flowing liquid acid, which makes them acceptable for transport in the hold. You should always notify your airline in advance to confirm their specific mobility aid procedures. It is also vital to insulate the terminals with tape or original covers to prevent any accidental short circuits during the flight.
