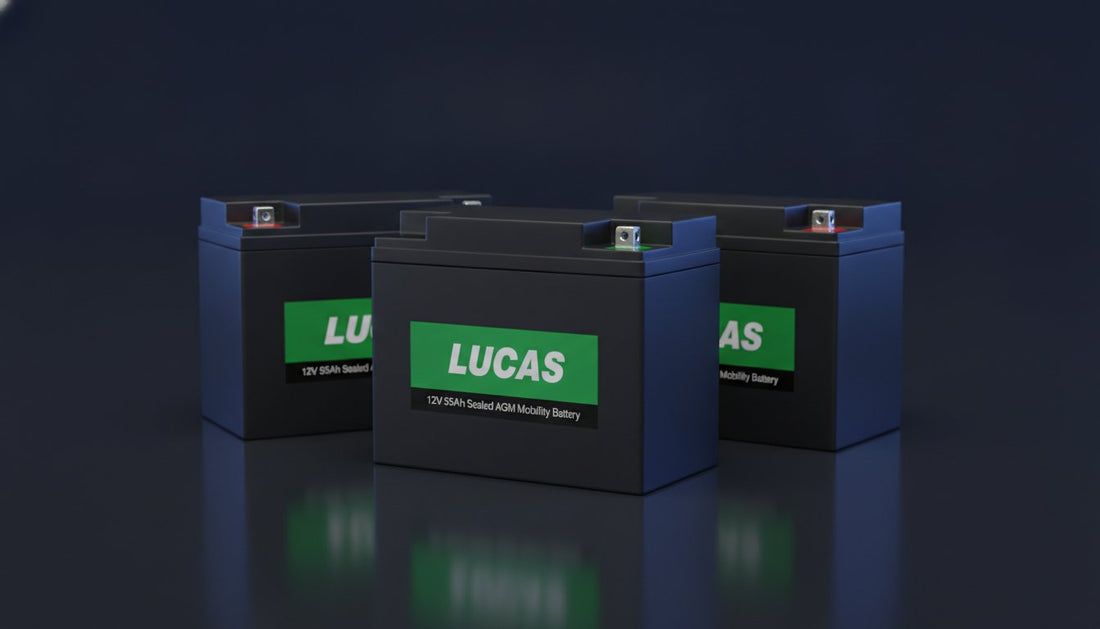

Lucas 12V 55Ah Sealed AGM Mobility Batteries: The Definitive Technical Guide

Could your mobility scooter's battery be the single point of failure between a day of independence and being stranded on a pavement far from home? Most users understand that reliable power is non-negotiable, yet finding the correct replacement often involves sorting through a maze of confusing physical dimensions and terminal types. Choosing Lucas 12V 55Ah Sealed AGM Mobility Batteries offers a proven solution for those requiring a balance of high-capacity deep-cycling and a compact footprint. These batteries are engineered to meet the demands of the UK's most popular 8mph scooters and wheelchairs, providing the dependable energy source needed for daily use.

It's reasonable to feel anxious about whether a new battery will actually fit your specific model or if it'll provide the range you expect. This definitive technical guide eliminates that uncertainty by providing the precise data you need to make an informed decision. You'll discover the exact technical specifications, terminal configurations, and maintenance protocols required to maximise the lifespan of your power source. We'll also examine compatibility requirements and the regulatory standards set by the MHRA to ensure your equipment remains safe and functional. By the end of this article, you'll have the technical confidence to secure your daily independence with a reliable power setup.

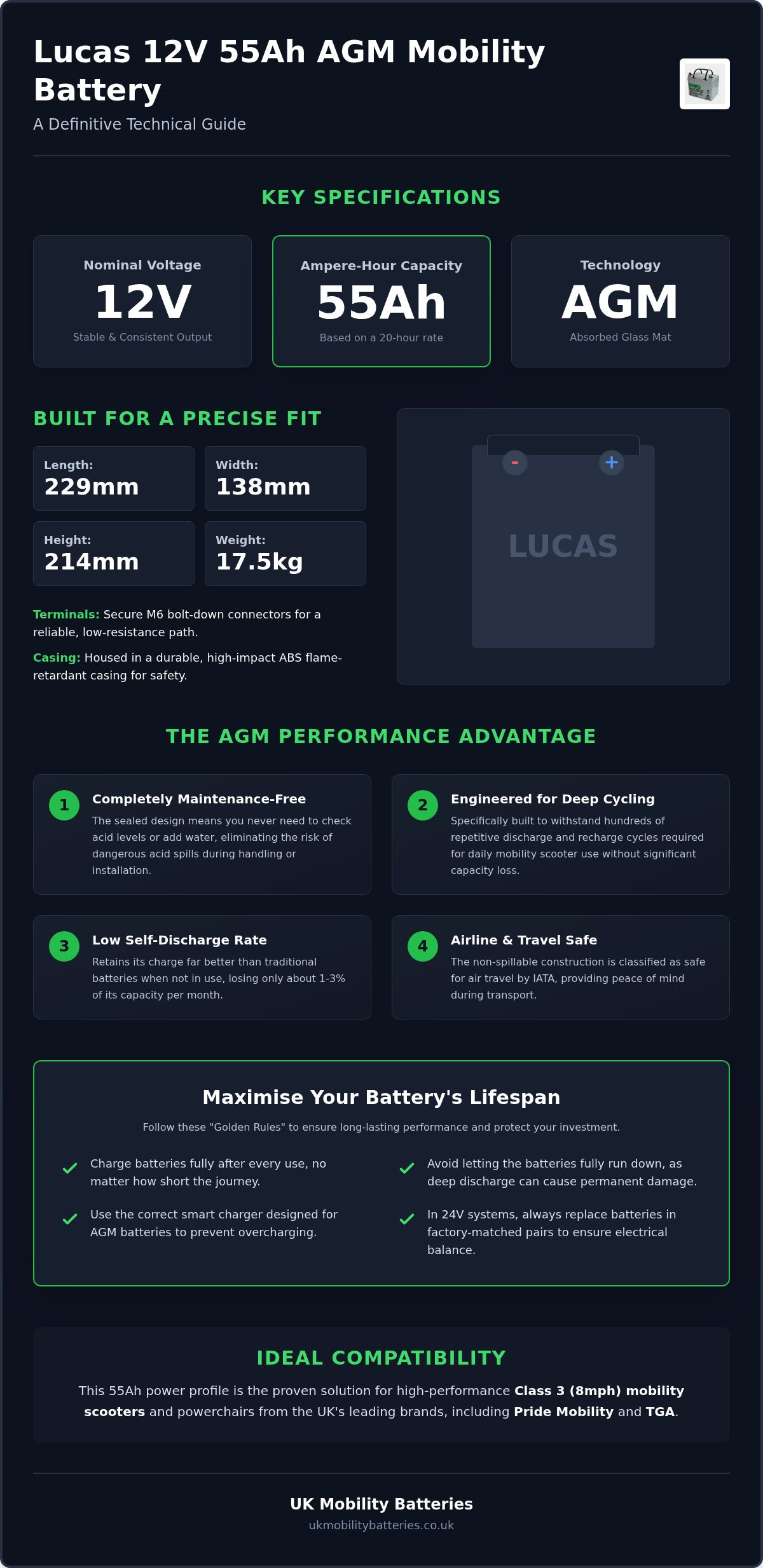

Technical Specifications of the Lucas 12V 55Ah (LSLC55-12) Battery

The Lucas 12V 55Ah (LSLC55-12) is a high-performance power unit designed specifically for deep-cycle applications. Unlike standard automotive batteries, these units are built to withstand repeated discharge and recharge cycles without significant degradation. The 12V electrical profile provides a stable voltage output, whilst the 55Ah capacity rating represents the total energy stored. This rating is based on the industry-standard 20-hour discharge rate, meaning the battery can deliver 2.75 Amps of current continuously for 20 hours before reaching its cut-off voltage. Using Lucas 12V 55Ah Sealed AGM Mobility Batteries ensures that your equipment has a consistent energy reserve for extended journeys.

Physical precision is vital for correct fitment. The LSLC55-12 model features standardised dimensions that allow it to fit into most medium-to-large battery compartments:

• Length: 229mm
• Width: 138mm
• Height: 214mm

These measurements include the terminals, ensuring the battery fits into the dedicated trays found in most Class 3 mobility scooters. The terminal configuration typically utilises M6 threaded inserts. These bolt-down connectors provide a secure, low-resistance electrical path that won't vibrate loose during transit. A single battery weighs approximately 17.5kg. This substantial mass is a direct indicator of lead density; heavier batteries generally contain thicker lead plates, which translates to a longer service life and better performance under load.

Understanding the LSLC55-12 Part Number

The Lucas nomenclature provides essential data about the battery's construction. The "LSLC" prefix stands for Lucas Sealed Lead Cyclic, identifying it as a unit designed for repeated cycling rather than occasional starting bursts. The "55" denotes the Ampere-hour capacity, and "12" indicates the nominal voltage. To ensure you are installing a genuine product, look for the distinct Lucas branding and holographic security markers on the casing. This Sealed AGM Technology ensures the battery is maintenance-free and safe for use in various orientations without the risk of acid leakage.

Physical Footprint and Casing Durability

Safety and durability are integrated into the battery's external design. Each unit is housed in an ABS flame-retardant casing, which provides high impact resistance and thermal stability. This robust construction is essential for resisting the constant vibrations caused by uneven UK pavements and kerb transitions. Because this model shares the same footprint as many 50Ah units, it's often a direct upgrade for users seeking a slightly higher range without needing to modify their battery box. Choosing Lucas 12V 55Ah Sealed AGM Mobility Batteries ensures a reliable fit whilst providing that extra capacity margin for daily independence.

Performance Advantages of Sealed AGM Technology

The primary benefit of Absorbed Glass Mat (AGM) technology lies in its internal architecture. In these batteries, the sulphuric acid electrolyte is completely absorbed into fine fibreglass mats sandwiched between the lead plates. This design differs significantly from traditional flooded batteries where the plates sit in liquid acid. Because the electrolyte is trapped, Lucas 12V 55Ah Sealed AGM Mobility Batteries are entirely maintenance-free. You'll never need to check acid levels or top up the unit with distilled water, which eliminates the risk of acid spills during handling or installation.

Deep-cycle engineering allows these batteries to handle the repetitive discharge and recharge cycles required for daily mobility. Whilst standard car batteries are designed for a high-intensity burst to start an engine, these units provide a sustained energy flow. They can typically endure hundreds of cycles to a 50% depth of discharge without losing their capacity. Additionally, AGM units exhibit a much lower self-discharge rate. If your scooter sits idle for a few weeks, the battery will retain its charge far better than a flooded alternative, losing only about 1% to 3% of its capacity per month.

Safety during transport is another critical advantage. The non-spillable construction means these batteries are classified as safe for air travel by IATA and other regulatory bodies. They won't leak even if the casing is cracked or the unit is tilted. This makes them the ideal choice for users who frequently use public transport or plan to take their equipment abroad. High-quality Lucas 12V 55Ah Sealed AGM Mobility Batteries provide the peace of mind required for travel. If you're looking for a dependable upgrade, you can view our range of Lucas AGM batteries to find the correct fit for your device.

AGM vs. Gel: Which is Right for You?

Whilst Gel batteries are often cited for their extreme deep-discharge recovery, AGM technology provides superior energy density for most UK users. AGM batteries offer better 'burst' power, which is essential for tackling steep inclines or climbing kerbs. They also feature a lower internal resistance, allowing for faster charging times. For the average mobility scooter user, the cost-to-performance ratio of AGM is usually more favourable than Gel alternatives for daily pavement and road use.

Safety and Indoor Use Compliance

These batteries are classified as VRLA (Valve Regulated Lead Acid). They feature one-way pressure relief valves that manage internal gas pressure. During the charging process, oxygen and hydrogen are recombined back into water within the battery with approximately 99% efficiency. This gas recombination prevents the release of corrosive fumes, making sealed batteries mandatory for indoor storage and charging. This process also prevents terminal corrosion, ensuring a clean electrical connection throughout the battery's service life.

Compatibility Guide: Which Scooters Use 55Ah Batteries?

Class 3 mobility scooters, which are road-legal and capable of speeds up to 8mph, typically rely on the power density provided by 55Ah units. These larger vehicles require a robust energy source to handle longer distances and more demanding terrain. Common UK manufacturers such as Pride Mobility, Invacare, Sunrise Medical, and TGA design their chassis to accommodate these specific dimensions. If your current scooter uses 50Ah batteries, you can often upgrade to Lucas 12V 55Ah Sealed AGM Mobility Batteries to gain approximately 10% more range. Because the physical casing size of 229mm x 138mm x 214mm is frequently identical between 50Ah and 55Ah variants, this step-up is a straightforward way to increase your daily mileage without needing a larger battery box.

It's a technical necessity to replace these batteries in pairs. Mobility scooters operate on a 24V system, which is achieved by connecting two 12V batteries in series. Mixing a new battery with an old one, or using two different brands, creates an electrical imbalance. The stronger battery will constantly attempt to charge the weaker one, leading to premature failure of both units. To ensure system stability and maintain your warranty, always install a factory-matched pair of Lucas 12V 55Ah Sealed AGM Mobility Batteries.

Popular Scooter Models Compatible with 55Ah Units

Many of the UK's most reliable heavy-duty scooters utilise this battery size. Models such as the Pride Colt Executive, TGA Breeze S4, and the Invacare Comet are designed specifically for this power profile. Before purchasing, you should verify the fitting tolerance within your battery compartment. Whilst the batteries follow standard dimensions, you must ensure there is enough clearance for the wiring loom and any securing straps. For a deeper look at choosing the right power source, consult The Ultimate Guide to Mobility Scooter Batteries UK.

Terminal Orientation and Wiring Harnesses

Correct terminal layout is vital for a successful installation. Most 55Ah Lucas units feature M6 threaded inserts, which require a bolt to secure the ring terminals of your scooter's wiring harness. You must check whether your positive and negative cables are long enough to reach the terminals in their specific positions. If your existing connectors show signs of green or white powdery corrosion, they should be cleaned or replaced immediately. Corroded terminals increase electrical resistance, which generates heat and prevents the battery from delivering its full power to the motor.

Maximising the Lifespan of Your Lucas 55Ah Deep Cycle Batteries

Proper maintenance of your power source is the difference between a three-year lifespan and a six-month failure. The most critical instruction for Lucas 12V 55Ah Sealed AGM Mobility Batteries is to charge them after every single trip, regardless of the distance travelled. This "Golden Rule" prevents the onset of sulphation, a chemical process where lead sulphate crystals harden on the plates and permanently reduce capacity. Leaving batteries in a partially discharged state, even for one night, initiates this degradation. It's a common misconception that you should wait for the battery to be empty before charging; in reality, lead-acid chemistry thrives on being kept full.

Avoiding the "Deep Discharge" trap is equally vital for longevity. You should never wait for your scooter's battery gauge to hit the red zone before plugging in. Repeatedly discharging the unit below 50% of its capacity significantly reduces the total number of cycles the battery can provide. If you notice the gauge dipping sharply during acceleration, it's a clear indicator that the battery is under stress. Consistently shallow discharge cycles followed by immediate full recharges will yield the highest number of service years.

Temperature management plays a significant role in performance, particularly during a typical UK winter. Cold weather slows the chemical reactions inside the AGM cells, which can temporarily reduce the available range by up to 20% in freezing conditions. If you don't use your scooter daily, you must still perform a full maintenance charge at least once a month. This ensures the internal chemistry remains active and prevents the voltage from dropping to a level where the charger can no longer detect the unit. To keep your equipment in peak condition, you can order your replacement Lucas batteries here for reliable national delivery.

The Ideal Charging Regimen for 55Ah Capacities

For a 55Ah capacity, you should ideally use a 5-Amp or 8-Amp smart charger. These devices follow a multi-stage profile that ensures the battery reaches full saturation. A complete charge cycle typically takes between 8 and 12 hours. You must avoid "topping up" for only an hour; this short burst doesn't allow the charger to enter its final float stage and can lead to an imbalanced charge. If you have concerns about leaving the unit plugged in, our guide on Can You Overcharge a Mobility Scooter Battery? provides detailed technical reassurance.

Signs Your 55Ah Batteries Need Replacing

Even with perfect care, all lead-acid batteries eventually reach the end of their service life. When your Lucas 12V 55Ah Sealed AGM Mobility Batteries no longer hold a charge throughout your usual route, it is time to consider a fresh pair. A primary symptom of failure is a sudden voltage drop when climbing hills or accelerating from a standstill. You might also notice that your charger reaches "Full" status much faster than it used to. This happens because the battery's internal resistance has increased, leaving it with very little actual storage capacity. For more diagnostic tips, read our Mobility Scooter Battery Troubleshooting guide to identify common failure patterns.

Sourcing Reliable Lucas 12V 55Ah Batteries in the UK

Sourcing Lucas 12V 55Ah Sealed AGM Mobility Batteries from a specialist retailer is a technical necessity rather than a mere preference. General battery retailers often stock wide ranges of products that may sit in warehouses for extended periods. Lead-acid chemistry degrades if left in a partially discharged state for months; therefore, buying from a high-turnover specialist ensures you receive fresh stock with optimal chemical health. At UK Mobility Batteries, we prioritise inventory rotation to ensure every unit delivered meets factory voltage standards upon arrival.

The requirement for "matched pairs" in 24V mobility systems cannot be overstated. When you order a pair of 55Ah batteries, they should ideally come from the same production batch. This ensures that the internal resistance and discharge characteristics of both units are nearly identical. An imbalanced pair will cause the charging system to work harder, eventually leading to the premature failure of the newer or stronger battery. We specifically pair units to maintain electrical equilibrium within your scooter's power circuit.

Logistics for 18kg power units require specific handling protocols to prevent damage. Standard courier networks often struggle with the weight and fragility of battery terminals. We use reinforced packaging specifically designed to protect the M6 threaded inserts and the ABS casing from impact damage during transit. This ensures that your components arrive in perfect condition, ready for immediate installation without the risk of hairline fractures in the casing that could lead to internal drying of the AGM mats.

Environmental responsibility is a legal and ethical requirement for all lead-acid battery users in the UK. These units are approximately 98% recyclable. You should never dispose of old 55Ah batteries in domestic waste. Most local authority recycling centres across the UK provide dedicated skips for lead-acid batteries, ensuring that the lead and plastic are reclaimed and the acid is neutralised safely. Proper disposal supports the circular economy and prevents heavy metal contamination.

The UK Mobility Batteries Advantage

Choosing a specialist provider gives you access to expert technical support that generalist shops cannot offer. Whether you are confirming fitment for a specific Pride Mobility model or have questions about terminal layouts, our team provides data-driven answers. We offer fast, national UK delivery to address urgent replacement needs, ensuring your daily independence isn't compromised by equipment downtime. We only supply genuine Lucas deep-cycle products, ensuring you receive the exact performance profile described in this guide.

Ordering and Installation Support

Before placing an order, you should identify the correct battery size by checking the labels on your existing units. Look for the "55Ah" or "LSLC55-12" designation. If your labels are worn, measure the internal dimensions of your battery box to ensure compatibility with the standard 229mm x 138mm x 214mm footprint. Every battery undergoes a pre-delivery voltage check in our warehouse to confirm it is at a full state of charge before it leaves. For a detailed walkthrough on the fitting process, read our guide on How to Change Mobility Scooter Batteries.

Secure Your Mobility with Technical Precision

Selecting the correct power source is essential for maintaining your daily independence and equipment reliability. By confirming the 229mm x 138mm x 214mm dimensions and utilising M6 threaded terminals, you ensure a precise fit for your Class 3 scooter. Adhering to the "Golden Rule" of charging after every trip and avoiding deep discharge will significantly extend the service life of your investment. Sourcing factory-matched pairs ensures electrical balance, preventing premature failure in 24V systems. It's the most effective way to protect your vehicle's motor and electronics from voltage fluctuations.

Investing in Lucas 12V 55Ah Sealed AGM Mobility Batteries provides the energy density and deep-cycle durability required for the UK's demanding terrain. We offer specialist technical support and fast national delivery to ensure you receive genuine Lucas technology without unnecessary delays. Our team understands the high stakes of mobility equipment and prioritises fresh, tested stock for every customer to ensure maximum chemical health upon arrival.

Order your Lucas 12V 55Ah Sealed AGM Batteries today for fast UK delivery and regain the technical confidence to travel further with ease.

Frequently Asked Questions

Can I replace my 50Ah batteries with these Lucas 55Ah versions?

Yes, 55Ah batteries are often a direct upgrade for 50Ah units because they share the same physical footprint. The dimensions of 229mm x 138mm x 214mm are standard for both capacities, allowing Lucas 12V 55Ah Sealed AGM Mobility Batteries to fit into most medium-to-large battery trays. This upgrade provides approximately 10% more energy reserve, which is beneficial for users requiring a slightly longer range between charges.

Do Lucas 12V 55Ah batteries come with the bolts for the terminals?

Yes, these batteries include the necessary M6 bolts and washers for the threaded insert terminals. Because the terminals are recessed threaded holes, you won't need separate nuts. We recommend using the new bolts provided rather than old, potentially corroded ones to ensure a low-resistance electrical connection. Always tighten the bolts securely to prevent vibration-related power loss during use on uneven pavements.

How many miles of range can I expect from a pair of 55Ah batteries?

A pair of 55Ah batteries typically provides a range of 20 to 25 miles on a single charge for a standard Class 3 scooter. However, actual mileage varies based on the user's weight, the age of the motor, and the local terrain. Cold UK weather or frequent hill climbing will reduce this range, whilst flat pavements and moderate speeds will help achieve the maximum distance.

Are these batteries suitable for use on aeroplanes?

Yes, Lucas 12V 55Ah Sealed AGM Mobility Batteries are classified as non-spillable and are safe for air travel under IATA regulations. Since the electrolyte is absorbed in glass mats, there is no liquid to leak even if the battery is tilted. You must notify your airline in advance and ensure the terminals are disconnected and protected from short-circuiting before the scooter is loaded into the aircraft hold.

How long is the typical lifespan of a Lucas 55Ah AGM battery?

The typical service life is between 3 and 5 years when maintained correctly. This lifespan is measured in discharge cycles rather than just time. If you follow the technical advice of charging after every trip and avoid letting the battery sit in a discharged state, you'll maximise the longevity of the lead plates. Frequent deep discharges below 50% will shorten this period significantly.

Do I need to charge these batteries even if I haven't used the scooter?

Yes, you must perform a maintenance charge at least once every month if the scooter is in storage. All lead-acid batteries suffer from a small amount of natural self-discharge. If the voltage drops too low during long periods of inactivity, the internal chemistry can become damaged. This may result in your smart charger failing to recognise the battery when you eventually try to use it.

What size charger should I use for 55Ah mobility batteries?

We recommend using a 5-Amp or 8-Amp multi-stage smart charger for this capacity. A charger with at least 5 Amps of output ensures the battery reaches the correct saturation level within a reasonable 8 to 12-hour window. Using a smaller 2-Amp charger intended for travel batteries may take too long to reach a full charge, potentially leaving the plates partially sulphated over time.

Can I mix a new Lucas 55Ah battery with an old one of a different brand?

No, you should never mix batteries of different ages, brands, or capacities in a 24V system. The older battery will have a higher internal resistance, causing the new battery to overwork and fail prematurely. To ensure system stability and safety, always install a factory-matched pair of Lucas 12V 55Ah Sealed AGM Mobility Batteries at the same time to maintain electrical equilibrium.
