Mobility Scooter Battery Sizes UK: A Technical Reference Guide
What if the only thing standing between you and a reliable mobility scooter is a single millimetre of plastic casing? Many users find that selecting the correct mobility scooter battery sizes UK is more complex than simply matching the voltage. You've likely felt the frustration of looking at two batteries with different capacities that look identical, or perhaps you've worried that a higher range battery won't actually fit into your scooter's dedicated tray.
It's a common challenge to distinguish between electrical capacity and physical dimensions. This technical reference guide provides the exact specifications and measuring protocols you need to purchase a replacement with total confidence. We will walk through the standard UK battery classifications, provide a step by step method for measuring your existing unit, and explain the technical limitations of upgrading your Amp Hour rating for extended range.
By understanding these technical requirements, you can avoid the cost and delay of returning incorrect parts. We focus on the practical data for Lucas sealed AGM batteries, ensuring your Class 2 or Class 3 device remains compliant and operational whilst providing the dependable performance you require for daily use.
Key Takeaways
- Learn how to accurately identify mobility scooter battery sizes UK by matching both Amp Hour ratings and physical millimetre dimensions.
- Discover the exact method for measuring your battery case to ensure a secure fit and prevent terminal damage whilst in motion.
- Understand the technical feasibility of uprating your battery capacity to increase your scooter's range without exceeding the physical limits of the battery tray.
- Identify the differences between standard and deep-cycle AGM technology to select a power source that maintains performance over hundreds of charge cycles.
Understanding Mobility Scooter Battery Capacity (Amp Hours)
The Amp Hour (Ah) rating is the primary indicator of a battery's energy storage capacity. Technically, it represents the amount of electrical current a battery can deliver consistently over a specific period. For instance, a 20Ah battery is designed to provide 1 Amp of current for 20 hours, or 2 Amps for 10 hours, under controlled discharge conditions. Because Mobility scooters are usually battery powered, this rating determines the maximum distance you can travel on a single charge. When researching mobility scooter battery sizes UK, you'll find that Ah ratings vary significantly based on the intended use and weight of the vehicle.
Most UK mobility scooters operate on a 24V electrical system. To achieve this, manufacturers install two 12V batteries in a series circuit. This configuration combines the voltage of both units whilst the Amp Hour capacity remains that of a single battery. If you have two 34Ah batteries, your system provides 24V at 34Ah, not 68Ah. It's vital to replace these batteries as a pair to ensure balanced charging and discharge cycles, which prevents premature failure of a single unit. Using batteries with mismatched capacities or ages can lead to uneven internal resistance, ultimately shortening the lifespan of both cells.
Ah vs Voltage: Clearing the Confusion
Confusion often arises when users attempt to upgrade their equipment. Whilst you must always match the voltage requirement of your scooter, the Amp Hour rating can sometimes be increased if physical space permits. A higher Ah rating acts like a larger fuel tank. It doesn't make the scooter faster, but it does allow it to travel further. For compact travel models, the Lucas 12V 7Ah battery is a standard entry-level specification. You cannot, however, swap a 12V battery for a 6V or 24V unit without causing catastrophic electrical damage to the controller.
Standard UK Capacity Ratings
The UK market generally classifies mobility scooter battery sizes UK into three distinct tiers based on the vehicle's chassis size and weight capacity:
- Small/Travel Scooters: These boot-scooters are designed for portability and typically use 7Ah or Lucas 12V 12Ah Mobility Battery units. They prioritise low weight for easy lifting into car boots.
- Medium/Pavement Scooters: Class 2 vehicles intended for longer pavement use often utilise the Lucas 12V 34Ah Sealed AGM Deep Cycle Battery to balance range with physical size.
- Large/Road Scooters: Class 3 road-legal models require heavy-duty power. These units typically house the Lucas 12V 50Ah Mobility Battery or Lucas 12V 55Ah Sealed AGM Mobility Batteries to handle higher speeds and steeper gradients.
Physical Dimensions: Measuring Your Battery Case Correctly
Precision is essential when selecting a replacement power cell. Whilst the electrical capacity dictates range, the physical dimensions determine whether the battery will safely integrate with your vehicle. Mobility scooter battery sizes UK are standardised in millimetres; even a 5mm discrepancy can prevent a battery shroud from closing or cause the unit to sit unevenly in the tray. A loose battery is prone to vibration during transit, which leads to internal plate damage and premature terminal wear. Securing the battery properly is also a critical component of managing fire risk within your home or storage area.

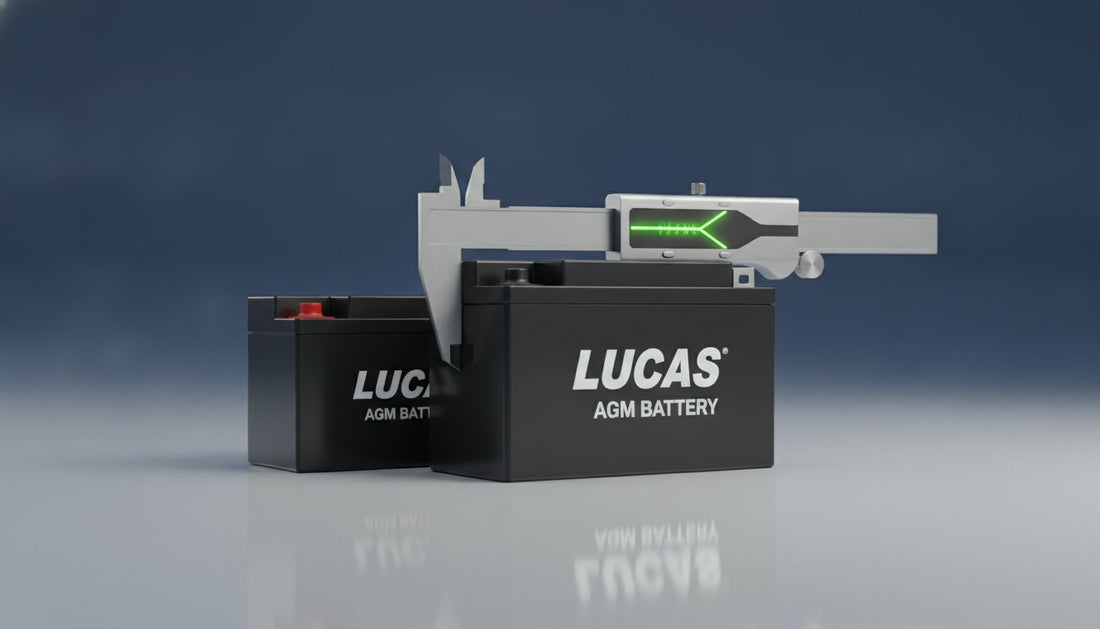

To obtain accurate data, you'll need a standard metric tape measure or a digital calliper. It's often more reliable to measure the internal dimensions of the battery tray or the plastic battery box rather than the old battery alone. This ensures you account for any foam padding or securing straps that take up space. If you find your current tray has significant excess room, you might be able to browse our range of Lucas mobility batteries to find a larger capacity unit that fits the footprint.
The LxWxH Protocol
Follow this three-step protocol to document your requirements accurately:
- Step 1: Length. Measure the longest side of the battery base from end to end.
- Step 2: Width. Measure the shorter side of the battery base.
- Step 3: Height. Measure from the bottom of the case to the very top of the terminals. This is the "Total Height" and is the most common point of failure for fitment under tight seat shrouds.
Terminal Orientation and Layout
Physical size isn't just about the outer box. You must also verify the terminal layout. Some batteries have the positive (+) terminal on the right, whilst others have it on the left. If the orientation is reversed, your scooter's internal wiring looms may not reach. Mobility scooter battery sizes UK often share similar footprints but differ in terminal positioning. Additionally, check the terminal type. Smaller 7Ah or 12Ah units typically use spade connectors, whereas larger 34Ah and 50Ah models use bolt-through inserts. Ensure your replacement matches the existing connection style to avoid the need for complex cable modifications.
Comparison of Common Mobility Battery Sizes in the UK
You'll find that standardisation across the industry ensures that mobility scooter battery sizes UK remain predictable for consumers. Most batteries are built into specific 'case sizes' that represent the physical exterior shell. This allows Lucas to manufacture high-performance AGM batteries that fit seamlessly into equipment from various scooter brands. When selecting a replacement, you must match the existing case size to ensure the battery fits within the tray and the terminal cables reach correctly. Small deviations in millimetre measurements are common between brands, but the industry-standard footprints remain the primary guide for compatibility.
Small and Travel Scooter Battery Sizes
The most compact scooters typically utilise 7Ah or 9Ah units. A standard Lucas 12V 7Ah Sealed AGM Battery or Lucas 12V 9Ah Uprated Sealed AGM Battery measures 151mm in length, 65mm in width, and 95mm in height. These batteries are often housed in a plastic battery pack that is removed from the scooter for off-board charging. It's essential to follow fire safety guidance whilst charging these portable packs indoors to ensure safe operation. The next step up is the Lucas 12V 12Ah Mobility Battery, which maintains the same 151mm length and 95mm height but increases in width to 98mm. If your battery box is narrow, a 12Ah unit won't fit where a 7Ah was previously installed. For larger boot-scooters, the Lucas 12V 20Ah Mobility Battery is common, measuring 181mm x 77mm x 167mm.
Pavement and Heavy Duty Scooter Battery Sizes
Class 2 pavement scooters and smaller Class 3 road models move into mid-range case sizes. The Lucas 12V 34Ah Sealed AGM Deep Cycle Battery is a standard UK size, measuring 196mm x 130mm x 159mm. This specific footprint is often interchangeable with 36Ah units as they share identical external dimensions. For larger road-legal scooters that require higher current draws, the Lucas 12V 50Ah Mobility Battery and Lucas 12V 55Ah Sealed AGM Mobility Batteries are the preferred choice. These measure approximately 229mm x 138mm x 208mm. Finally, the largest heavy-duty scooters use 75Ah batteries. These units have a significant footprint of 259mm x 168mm x 208mm and are considerably heavier, which impacts the overall weight of the vehicle. Always verify your specific mobility scooter battery sizes UK before purchasing to ensure the replacement matches these standard footprints.
Can You Upgrade to a Higher Capacity Battery?
Upgrading the capacity of your power cells is a common request for users seeking extended range. Technically, you can replace a lower Amp Hour (Ah) battery with a higher one, provided the voltage remains identical. If your scooter requires a 12V system, you must stay with 12V units. The primary hurdle when exploring mobility scooter battery sizes UK for an upgrade is the physical footprint of the battery tray. You cannot simply install a larger battery if the casing exceeds the millimetre dimensions of your current equipment.
A prime example of a successful upgrade is the 'uprated' battery. The Lucas 12V 9Ah Uprated Sealed AGM Battery is designed to fit into the exact same case size as a standard 7Ah unit (151mm x 65mm x 95mm). By increasing the internal plate density, manufacturers provide roughly 28% more runtime without requiring a larger battery box. This is a straightforward swap that requires no modifications to the vehicle. It's an efficient way to gain extra mileage whilst maintaining the portability of a travel scooter.
However, scaling up from a 12Ah to a 34Ah unit is physically impossible in most chassis. The increased lead content required for higher storage capacities necessitates a larger physical shell. If you attempt an upgrade and the scooter fails to operate correctly, you should consult our guide on mobility scooter battery troubleshooting to identify if the issue lies with the battery fitment or the charging system.
Capacity vs Physical Volume
Lead-acid battery technology relies on the surface area of internal plates. Consequently, higher Ah ratings usually correlate with increased weight and volume. You must use the LxWxH protocol established earlier to verify the maximum available space in your battery shroud. Some manufacturers include 'dead space' in their trays to accommodate larger optional battery packs. If your tray has an extra 20mm of width or length, you may be able to step up to a higher capacity model. To find a compatible upgrade for your specific model, you can browse our full range of Lucas mobility batteries.
Charger Compatibility for Upgrades
Your existing charger's output is calibrated for a specific capacity range. A standard 2-Amp charger will successfully charge a 12Ah battery in approximately 6 to 8 hours. If you upgrade to a 20Ah battery using the same charger, the cycle will take significantly longer. There is also a technical risk of undercharging. If the charger cannot reach the required 'float' voltage within its internal safety timer, the battery may never reach 100% capacity. This leads to sulphation and a reduced lifespan. If you increase your battery capacity by more than 30%, you should verify if your charger is rated for the new, higher Ah rating.
Selecting the Correct Lucas Battery for Your Scooter
Choosing a reputable brand is the final step in ensuring the long-term reliability of your equipment. Lucas has established itself as the dependable standard for UK mobility devices due to its consistent manufacturing tolerances and high-quality internal components. When you cross-reference your physical measurements with the mobility scooter battery sizes UK listed in this guide, you ensure the replacement unit integrates perfectly with your vehicle's chassis. This technical precision prevents mechanical stress on the terminals and maintains the original centre of gravity for the scooter.
The data provided in the previous sections allows you to browse our inventory with total confidence. Whether you require a compact Lucas 12V 7Ah Sealed AGM Battery for a travel model or a heavy-duty Lucas 12V 55Ah Sealed AGM Mobility Battery for a road-legal vehicle, matching the millimetre dimensions is the only way to guarantee a safe installation. Our inventory focuses on performance and durability, providing the exact specifications required by modern mobility controllers.
The AGM Advantage
Lucas mobility batteries utilise Sealed AGM (Absorbed Glass Mat) technology, which is engineered specifically for the rigours of daily mobility use. This construction offers several practical advantages over traditional flooded batteries. The electrolyte is held in glass fibre mats between the lead plates, making the unit entirely spill-proof and leak-proof. This design is not only safer for home storage but also allows these batteries to be classified as safe for air travel. Key technical benefits include:
- Maintenance-free design: These units are hermetically sealed. You never need to top up water levels or check acid concentrations.
- Deep-cycle capability: The internal chemistry is designed for repeated discharge and recharge cycles, maintaining capacity even after heavy daily use.
- Enhanced durability: The tightly packed internal structure provides superior resistance to the vibrations and shocks encountered on uneven UK pavements.
Expert Support and National Delivery
Identifying the correct mobility scooter battery sizes UK is a high-stakes task for your personal independence. If you're still uncertain about the specific case size or terminal orientation required for your model, our technical team provides specialist guidance to ensure a correct match. We value your time and prioritise accuracy over sales tactics. Once you've confirmed your requirements, our national UK delivery service ensures your replacement batteries arrive quickly to restore your mobility.
As a final technical reminder, you must always replace batteries in pairs. Installing a single new battery alongside an aged unit creates an electrical imbalance. The new battery will discharge faster to compensate for the older unit's internal resistance, leading to premature failure of both cells. By replacing the full 24V set with identical Lucas AGM units, you protect your investment and ensure the maximum possible range for every journey.
Securing Your Mobility with Technical Precision
Selecting the correct power source requires a methodical approach to both electrical capacity and physical dimensions. By following the LxWxH protocol and matching the terminal orientation of your existing equipment, you eliminate the risk of purchasing incompatible parts. Standardising your power source according to mobility scooter battery sizes UK ensures that your vehicle remains safe, compliant, and ready for daily use. Precision in these measurements is the most effective way to protect your equipment's internal electronics and maintain a consistent travel range.
Our team provides specialist technical support for UK customers to help you navigate these specifications with total accuracy. We supply premium Lucas AGM technology, engineered for durability and maintenance-free performance across all standard UK footprints. With fast national delivery available on our entire inventory, you can restore your independence without unnecessary delays. Browse our full range of Lucas mobility scooter batteries to find the exact match for your device today. You can move forward with confidence knowing your scooter is powered by industry-standard reliability.
Frequently Asked Questions
How do I know what size battery my mobility scooter takes?
You should first inspect the labels on your existing batteries to identify the Amp Hour (Ah) rating and voltage. Once you have these electrical specifications, use a metric tape measure to record the length, width, and total height of the casing in millimetres. This data is essential for matching mobility scooter battery sizes UK to your specific vehicle chassis and ensuring a secure fit within the battery tray.
Can I put a bigger battery in my mobility scooter for more range?
You can increase the Amp Hour rating of your batteries if your scooter's battery compartment has sufficient physical clearance. A higher Ah rating provides a larger energy reserve, which extends your daily travel distance. However, you must always match the original voltage of your system. It's also important to verify that your existing charger can handle the increased capacity without overheating or timing out during the cycle.
Are all mobility scooter batteries the same physical size?
Physical dimensions vary significantly based on the energy capacity and the intended use of the vehicle. Higher capacity batteries require more lead plates and larger external shells to store energy. Whilst many manufacturers adhere to industry-standard case sizes, you must verify the exact millimetre measurements of each unit before purchasing. Even a small discrepancy in height or width can prevent the battery shroud from closing correctly.
What is the difference between a 34Ah and a 36Ah mobility battery?
The difference lies in the internal plate density and the resulting energy storage capacity. These two ratings typically share the same physical case footprint, which is usually 196mm x 130mm x 159mm. In most instances, they are technically interchangeable. Selecting a 36Ah unit provides a marginal increase in runtime over a 34Ah model whilst occupying the same amount of space in your scooter's battery compartment.
How do I measure the height of my mobility scooter battery?
You must measure from the very bottom of the battery case to the highest point of the terminals. This is technically referred to as the "total height." This measurement is critical for scooters with tight plastic covers or under-seat storage areas where vertical clearance is limited. Using a battery that is even 5mm too tall can lead to terminal damage or prevent the seat from locking into position safely.
Will a 12V 22Ah battery fit in a 12V 17Ah battery tray?
A 22Ah battery will often fit in a 17Ah tray because they frequently share a similar footprint of approximately 181mm x 77mm. However, you must check the internal dimensions of your specific battery box first. Some 22Ah models have slightly thicker casings or different terminal heights. Always ensure there is enough room for the wiring looms to sit comfortably without being pinched by the battery cover or seat base.
Why are my mobility scooter batteries 12V but the charger says 24V?
Most UK mobility scooters utilise two 12V batteries connected in a series circuit to create a 24V electrical system. The charger is designed to replenish the combined voltage of both units simultaneously. This configuration is why it's vital to replace your batteries in pairs. Installing a single new battery alongside an old one causes an electrical imbalance that prevents the 24V charger from functioning efficiently, leading to premature failure.
Is there a standard size for travel scooter batteries?
Most travel or "boot" scooters utilise 12V 12Ah batteries, which typically measure 151mm x 98mm x 95mm. Smaller, ultra-portable models may use 7Ah or uprated 9Ah batteries housed in a narrower 151mm x 65mm x 95mm casing. Because mobility scooter battery sizes UK are standardised around these footprints, you can often find higher capacity "uprated" versions that fit into the same removable battery pack to give you extra range.
