12V 55Ah Wheelchair Batteries: Technical Specifications and Buying Guide

The 55Ah battery represents the performance sweet spot for heavy-duty powerchairs, providing the maximum possible energy density within the standard Group 22NF footprint. You likely depend on your electric wheelchair for every aspect of your daily routine; therefore, the fear of a flat battery or a poor-fitting replacement is a genuine concern. It's frustrating to decipher complex technical charts when you simply need a reliable way to get from A to B. Selecting the correct 12v 55ah wheelchair batteries is essential for maintaining your independence and avoiding the risk of being stranded.

This guide simplifies the selection process by detailing the exact technical requirements and compatibility factors of these deep-cycle power units. You'll discover how to ensure a perfect fit for your existing battery tray whilst gaining the performance benefits of maintenance-free operation. We will examine specific terminal configurations, the advantages of Lucas AGM technology, and the current 2026 IATA regulations regarding the safe air transport of non-spillable batteries. By understanding these specifications, you can ensure your mobility equipment remains reliable for all daily activities.

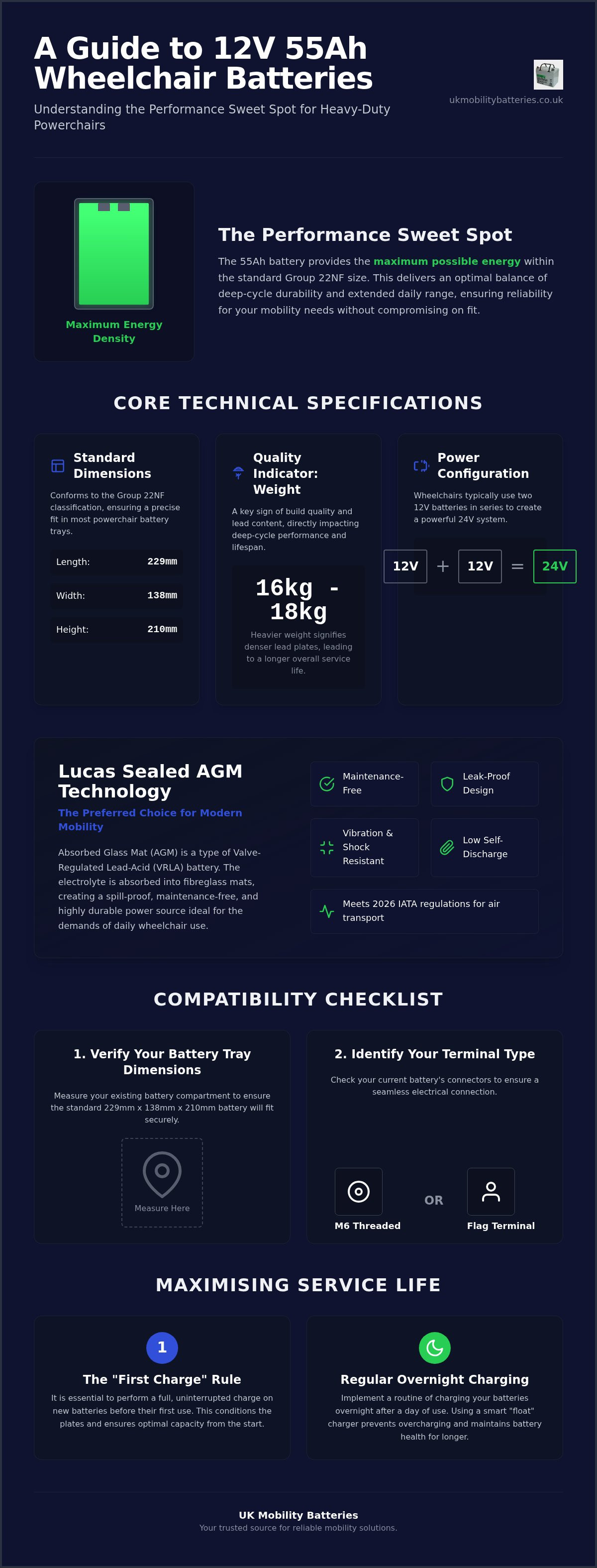

Technical Specifications of 12V 55Ah Wheelchair Batteries

The 12v 55ah wheelchair batteries are the standard power source for medium to heavy-duty electric wheelchairs. The "55Ah" rating signifies the Ampere-hour capacity, which dictates how much energy the battery can store and deliver over time. For a wheelchair user, this capacity directly translates into daily range. A higher Ah rating generally allows for more miles between charges, assuming the motor efficiency remains constant. It provides the necessary endurance for users who spend several hours a day in their chair.

These batteries typically adhere to the Group 22NF classification. This industry standard ensures that the battery fits into the specific compartments found on popular powerchair models. The standard physical dimensions are approximately 229mm (length) x 138mm (width) x 210mm (height). Checking these measurements is vital because even a few millimetres of variance can prevent the battery cover from closing correctly or cause the unit to rattle during transit. You should always measure your existing battery tray before purchasing a replacement.

Weight is a key indicator of lead content and build quality. A high-quality 55Ah battery usually weighs between 16kg and 18kg. While this adds to the overall mass of the wheelchair, the dense lead plates are necessary to maintain the deep-cycle performance required for mobility equipment. Lighter batteries often indicate thinner plates, which may result in a shorter overall lifespan. It's a trade-off between the total weight of the chair and the longevity of the power source.

Understanding Voltage and Amperage

Most electric wheelchairs operate on a 24V system. To achieve this, manufacturers use two 12V batteries connected in series. This configuration provides the necessary voltage for the drive motors whilst maintaining a manageable physical size for each individual unit. The 55Ah capacity ensures that the system has enough "fuel" for typical daily use, including navigating ramps and uneven pavements which draw more current. Deep-cycle batteries are specifically engineered to provide sustained power over long periods and withstand frequent, heavy discharge cycles without sustaining internal damage.

Sealed Lead Acid (SLA) vs AGM Construction

Modern mobility equipment relies almost exclusively on VRLA (Valve-Regulated Lead-Acid) batteries. These are sealed, non-spillable units that require zero maintenance from the user. Within this category, Absorbed Glass Mat (AGM) technology is the preferred choice for wheelchairs. AGM batteries use a fibreglass mat to soak up the electrolyte, making them highly resistant to vibration and physical shocks. This construction is essential for wheelchairs that regularly traverse kerbs or rough terrain. Choosing 12v 55ah wheelchair batteries with AGM construction ensures that the internal components remain stable even under heavy use. Unlike traditional wet-cell batteries, AGM variants don't require water top-ups and can be safely transported by air under current IATA guidelines.

Key Performance Features for Mobility Applications

The performance of 12v 55ah wheelchair batteries is measured by their ability to maintain consistent voltage under load and survive hundreds of deep discharge cycles. Unlike standard automotive batteries designed for short bursts of high current, these mobility units must provide steady energy over several hours. High-impact case materials, typically reinforced ABS plastic, protect the internal cells from the mechanical stresses of traversing kerbs and uneven pavements. This durability is essential for maintaining the integrity of the lead plates inside.

AGM technology ensures a low self-discharge rate, which is a critical feature for users who don't use their chair every day. A high-quality battery will retain a significant portion of its charge even during periods of inactivity. This reliability is coupled with a non-spillable design. Because the electrolyte is absorbed into glass mats, the battery can be operated in various positions without the risk of leakage, making it safer for use in domestic environments and for transport in adapted vehicles.

Reliability and Safety Standards

Safety is a primary concern for equipment used indoors and in public spaces. Modern 12v 55ah wheelchair batteries must adhere to strict industry performance and safety standards to ensure user protection. The 2026 IATA Dangerous Goods Regulations (67th Edition) confirm that non-spillable AGM batteries are generally exempt from restrictive shipping requirements, provided they pass specific vibration and pressure differential tests. This makes them suitable for air travel without the need for complex hazardous goods documentation. Internal pressure relief valves are also integrated into the casing. These valves allow the controlled release of gas if the battery is accidentally overcharged, preventing the risk of casing deformation or rupture.

Vibration Resistance and Durability

Powerchairs subject their internal components to constant micro-vibrations and occasional sharp jolts. AGM construction is particularly effective here, as the tightly packed glass mats provide physical support to the lead plates, preventing them from shedding active material. This shedding is a common cause of premature failure in lesser batteries. Reinforced terminals are another vital feature. These heavy-duty connections prevent the electrical circuit from being interrupted by physical movement, ensuring a stable flow of power to the wheelchair's controller. For those seeking a dependable replacement, the Lucas 12V 55Ah Sealed AGM Mobility Batteries provide the necessary vibration resistance for demanding daily use.

The internal plate design also plays a role in longevity. Manufacturers use thicker grids and high-density lead pastes to improve the battery's ability to recover from deep discharges. This engineering ensures that the battery doesn't just work well when new, but maintains its capacity over many months of regular service. Choosing a battery with these specific performance features is the best way to ensure your mobility equipment remains dependable and safe.

Compatibility: Will a 55Ah Battery Fit Your Wheelchair?

Determining whether 12v 55ah wheelchair batteries are compatible with your specific equipment requires more than just matching the voltage. You must verify that your wheelchair's battery tray can accommodate the physical footprint of a Group 22NF unit. Whilst many mid-sized and large powerchairs are designed for this standard, you should use a tape measure to check the internal clearance of the battery compartment. The standard dimensions of 229mm x 138mm x 210mm are precise. Even a small obstruction or a tight wiring loom can prevent a successful installation. Don't rely solely on the labels of your old batteries; physical verification of the tray is the only way to guarantee a perfect fit.

Many users look to upgrade from 42Ah or 50Ah units to 55Ah to gain additional daily mileage. This is often a straightforward swap because these capacities frequently share the same external casing size. If your current batteries are smaller but the tray has extra space, moving up to 55Ah provides a significant boost in endurance. However, you must also confirm that your existing charger is compatible. Most modern mobility chargers have an AGM charging profile that handles the 55Ah capacity effectively. If your charger is rated for a much lower capacity, such as 2A, it may take an excessively long time to reach a full charge, potentially lead to undercharging issues over time.

Common Wheelchair Models Using 55Ah

The 55Ah battery is the standard choice for many flagship powerchairs from brands like Invacare, Sunrise Medical, and Pride Mobility. These models are engineered for outdoor use and require the high energy density that a 55Ah cell provides. Conversely, compact or "boot" wheelchairs usually lack the chassis strength and space for these heavy 17kg units. If you're unsure which capacity your chair requires, you can consult our Best batteries for electric wheelchairs guide for model-specific advice. Selecting the wrong size can affect the chair's centre of gravity and overall safety.

Terminal and Connection Guidance

You must identify the terminal type on your existing batteries before ordering. The most common configuration for 12v 55ah wheelchair batteries is the M6 threaded insert, where a bolt screws directly into the battery top. Some older models might use flag terminals. Ensuring you have the correct type prevents the need for terminal adapters, which can introduce electrical resistance. When installing new units, ensure the leads are clean and tightly secured. When preparing for travel, identifying your terminals correctly is also a requirement for following FAA battery safety guidelines regarding the prevention of short circuits. For more details on identifying these parts, see our guide on identifying mobility scooter battery terminal types.

Maximising Service Life and Charging Protocols

Maintaining 12v 55ah wheelchair batteries requires a disciplined approach to charging. The service life of these units is directly proportional to how well they're treated during the first few weeks of use. Upon receiving new batteries, you must follow the "First Charge" rule. Even if the batteries arrive indicating they're nearly full, you should connect them to a charger for at least 12 hours before your first trip. This initial cycle ensures the internal chemistry is fully activated and balanced across both units in the 24V system, providing a stable foundation for future performance.

Daily charging is equally important for long-term health. You should charge your wheelchair overnight after every day of use, regardless of how much power remains in the cells. These deep-cycle batteries perform best when they reach the "float" stage of the charging cycle. This stage allows the charger to maintain the battery at 100% capacity whilst preventing the internal plates from overheating. Avoiding deep discharge is the most effective way to prevent premature failure. You should never allow your battery level to drop to 0%. Ideally, recharge the system once the gauge reaches 50% to prevent internal sulphation, which is the primary cause of capacity loss.

Correct Charging Procedures

Connecting your charger correctly prevents electrical surges and protects the wheelchair's sensitive controller. Always plug the charger into the wheelchair charging port before switching on the mains power. It's essential to use an automatic 3-stage or 4-stage smart charger specifically designed for AGM profiles. These devices monitor the battery's state of charge and adjust the current to prevent damage. For a detailed look at safety, read our expert guide on can you overcharge a mobility scooter battery? to understand how modern smart chargers protect your investment.

Environmental Factors and Battery Health

Temperature significantly affects the chemical reactions inside your 12v 55ah wheelchair batteries. Extreme cold can reduce available capacity by up to 30%, which may leave you with less range than expected during winter months. To maintain performance, store and charge your wheelchair in a temperate, dry environment whenever possible. You should also regularly inspect the battery terminals. Use a dry cloth to remove any dust or moisture that could cause parasitic power loss or corrosion. If you notice a sudden drop in daily mileage or the chair feels sluggish on inclines, these are clear signs your batteries are nearing the end of their service life. For a dependable replacement with fast UK delivery, you can buy Lucas 12V 55Ah Mobility Batteries to ensure your equipment remains reliable.

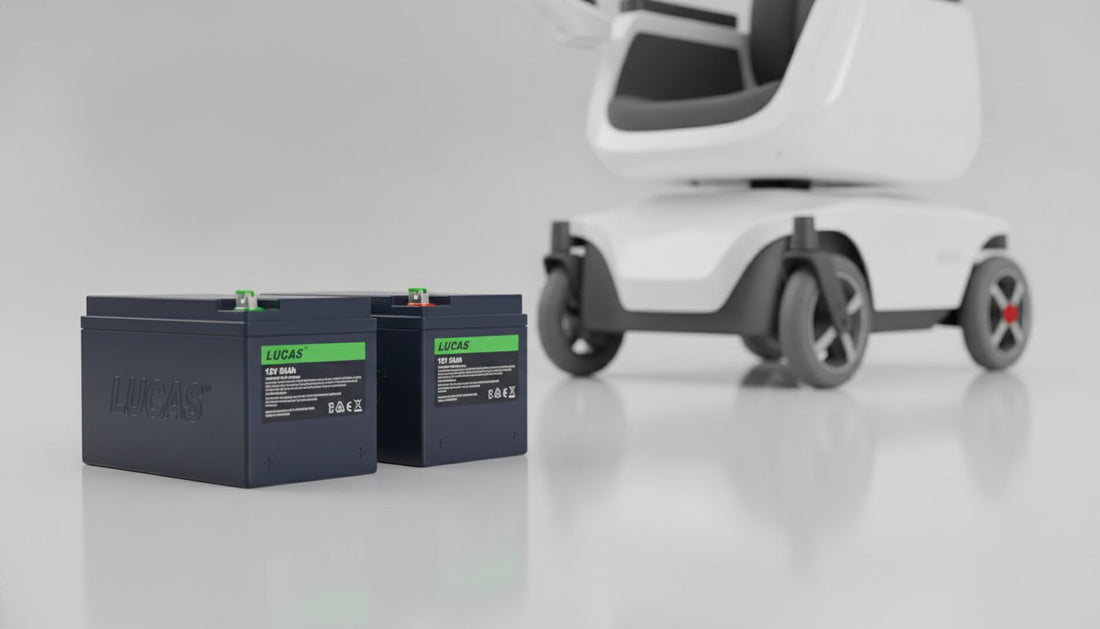

Selecting Lucas 12V 55Ah Batteries for Reliable Mobility

Lucas is a trusted name amongst UK mobility users, holding a long-standing reputation for electrical excellence and battery longevity. Choosing Lucas 12V 55Ah Sealed AGM Mobility Batteries ensures your equipment is powered by a brand that understands the specific demands of heavy-duty powerchairs. These batteries aren't generic power units; they're engineered with reinforced lead plates and high-density active material to withstand the rigours of daily outdoor use. For those who rely on their wheelchair for total independence, this brand reliability provides the peace of mind that your chair will perform as expected, even on longer journeys or challenging terrain.

UK Mobility Batteries specialises in these premium power solutions, offering expert technical support to ensure you select the correct unit for your chassis. We recognise that being without a functional wheelchair is a significant disruption to daily life. Consequently, we provide fast national delivery across the UK to get you back on the road as quickly as possible. Our team has extensive knowledge of mobility power requirements and can assist with compatibility queries regarding Group 22NF tray sizes or specific terminal configurations.

The Lucas Advantage

The primary benefit of the Lucas mobility range lies in its deep-cycle durability. These batteries are designed to be discharged and recharged repeatedly without the rapid capacity loss seen in budget alternatives. The maintenance-free AGM design is particularly suited for high-use wheelchairs, as it eliminates the need for electrolyte top-ups and prevents leaks. Whilst different equipment may require different specifications, such as those detailed in our guide on 12V 7Ah Battery for Mobility Scooter: Technical Specifications, the 55Ah unit remains the standard for performance-focused powerchairs.

Ordering and Delivery Across the UK

Our secure online ordering process makes it simple to obtain your 12v 55ah wheelchair batteries. We strongly advise replacing your batteries in pairs. Installing a single new battery alongside an older unit causes an electrical imbalance; the older battery will have a higher internal resistance, which forces the new battery to work harder and reduces its overall lifespan. Replacing both units simultaneously ensures balanced performance and a consistent 24V output. You can Purchase your Lucas 12V 55Ah Wheelchair Batteries today to benefit from our specialist inventory and rapid shipping. Every battery is tested before dispatch to ensure it meets our rigorous quality standards, providing you with a dependable power source from the moment of installation.

Optimising Your Powerchair Performance

Selecting the correct 12v 55ah wheelchair batteries ensures your mobility equipment remains dependable for all daily tasks. By verifying the Group 22NF dimensions and matching the appropriate terminal types, you eliminate the risk of installation delays. Adhering to strict charging protocols, particularly the initial 12-hour cycle and consistent overnight charging, protects the internal chemistry of your power units and extends their overall service life.

Lucas maintenance-free AGM technology provides the vibration resistance and energy density required for heavy-duty use. Our specialist team is available to provide technical support, ensuring you receive the exact specifications needed for your chair. We offer rapid national shipping to minimise your time off the road and maintain your independence. Premium components combined with disciplined maintenance allow you to navigate your environment with total confidence.

Shop Lucas 12V 55Ah Mobility Batteries with Fast UK Delivery

Frequently Asked Questions

How long do 12V 55Ah wheelchair batteries typically last?

These batteries generally provide a service life of 12 to 18 months under regular daily use. The actual duration depends heavily on your depth of discharge and charging consistency. Batteries that are regularly discharged below 50% capacity will fail sooner than those kept well-charged. Using high-quality Lucas AGM units ensures you get the maximum number of cycles possible from the internal chemistry.

Can I replace my 50Ah batteries with 55Ah batteries?

You can replace 50Ah batteries with 55Ah versions if the physical dimensions are compatible. Most mobility equipment manufacturers use the standard Group 22NF casing for both capacities. This upgrade provides approximately 10% more range without requiring modifications to the battery tray. Always measure your existing battery's length, width, and height to confirm a precise fit before purchasing.

Are these 55Ah batteries safe for air travel?

Sealed AGM 55Ah batteries are classified as non-spillable and are safe for air travel under the 67th Edition of the IATA Dangerous Goods Regulations for 2026. You must ensure terminals are protected against short circuits and the units are clearly labelled. It's best to carry the technical data sheet for your 12v 55ah wheelchair batteries when checking in to satisfy airline safety requirements.

How often should I charge my 55Ah wheelchair batteries?

You should charge your batteries every night after use, regardless of how far you've travelled. Lead-acid batteries don't have a "memory effect" and perform best when kept at a high state of charge. Leaving them in a partially discharged state leads to sulphation, which permanently reduces their capacity. If the chair isn't used for several weeks, perform a refresh charge at least once a month.

Should I replace both batteries in my wheelchair at the same time?

You must always replace wheelchair batteries in pairs to ensure balanced performance. A new battery connected to an older one will be forced to compensate for the older unit's higher internal resistance. This imbalance causes the new battery to degrade rapidly, often failing within a few months. Installing two identical Lucas 55Ah batteries ensures the 24V system operates at peak efficiency.

What is the standard warranty on 55Ah mobility batteries?

The standard manufacturer's warranty for these batteries in mobility applications is typically 12 months. This warranty covers internal manufacturing defects but doesn't extend to failure caused by neglect, such as leaving the batteries uncharged for long periods. You should verify the specific warranty terms for your 2026 purchase to understand the coverage provided for your equipment.

Can I use a car battery charger on my 55Ah wheelchair batteries?

You should never use a standard automotive charger on sealed mobility batteries. Car chargers often deliver a high-amperage charge that can overheat the sealed AGM cells and cause the pressure valves to vent. This leads to the battery drying out and failing prematurely. Always use a dedicated 3-stage or 4-stage smart charger designed specifically for the AGM charging profile.

What are the physical dimensions of a standard 55Ah battery?

A standard 55Ah battery follows the Group 22NF size specification, measuring approximately 229mm in length, 138mm in width, and 210mm in height. These dimensions include the terminals. Because 12v 55ah wheelchair batteries are heavy, weighing roughly 17kg each, you should ensure the battery tray is structurally sound and the mounting straps are secure before installation.
